■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Wide PV input voltage range
■ Can provide the power to the load without battery

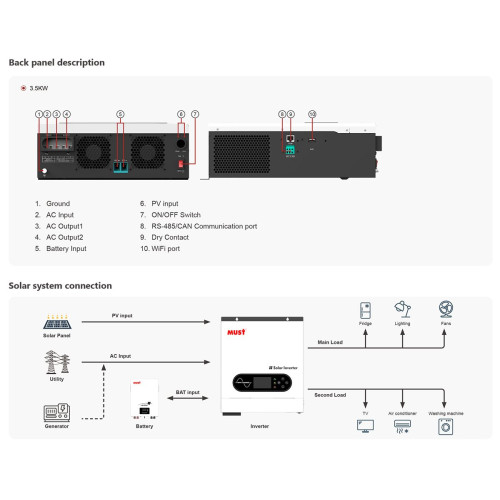

■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support RS485,CAN monitoring function
■ Dual outputs for smart load management
■ Can communicate with lithium batteries (CAN port)
| MODEL | PV18-1612 ECO | PV18-2524 ECO | PV18-3024 ECO | PV18-3524 ECO | PV18-5548 ECO | PV18-6248 ECO |
| Default Battery System Voltage | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | ||||||
| Rated Power | 2000VA/1600W | 2500VA/2500W | 3000VA/3000W | 3500VA/3500W | 5500VA/5500W | 6200VA/6200W |
| Output Channel | Dual | Dual | Dual | Dual | Dual | Dual |
| Surge Power | 3200W | 5000W | 6000W | 7000W | 11000W | 12400W |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | |||||
| Inverter Efficiency(Peak) | >90% | |||||
| Transfer Time | Typical < 10ms , 20ms max | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) | |||||
| Frequency Range | 50Hz / 60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Normal voltage | 12V | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC |
| Floating Charge Voltage | 13.7VDC | 27.4VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC |
| Overcharge Protection | 15VDC | 30VDC | 30VDC | 30VDC | 60VDC | 60VDC |
| SOLAR CHARGER & AC CHARGER | ||||||
| Maximum PV Input Voltage | 400VDC | 400VDC | 400VDC | 450VDC | 450VDC | 500VDC |
| Charging Algorithm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) | |||||
| Maximum PV Array Power | 2000W | 4000W | 4000W | 4000W | 6000W | 6200W |
| PV Array MPPT Voltage Range(Typ.) | 30~320VDC | 30~320VDC | 30~320VDC | 60~360VDC | 60~360VDC | 120~450VDC |
| PV maximum input current | 16A | 18A | 18A | 18A | 28A | 28A |
| Maximum Solar Charge Current | 80A | 100A | 100A | 100A | 100A | 120A |
| Maximum AC Charge Current | 80A | 60A | 60A | 60A | 100A | 100A |
| Maximum Charge Current | 80A | 100A | 100A | 100A | 100A | 120A |
| MECHANICAL SPECIFICATIONS | ||||||
| Machine Dimension (W*H*D)(mm) | 290*367*111 | 290*367*111 | 290*367*111 | 318*367*122.5 | 318*454*122.5 | 318*428*140 |
| Package Dimension (W*H*D)(mm) | 446*394*187 | 446*394*187 | 446*394*187 | 446*410*200 | 544.5*410*210 | 550*400*220 |
| N.W (kg) | 6.4 | 6.7 | 6.7 | 7.3 | 9.0 | 10.0 |
| G.W (kg) | 7.4 | 7.7 | 7.7 | 8.3 | 10.5 | 11.6 |
| OTHER | ||||||
| Humidity | 5% to 95% Relativ Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C~50°C | |||||
| Storage Temperature | -15°C -60°C | |||||
| Warranty | 2years | |||||
| CERTIFICATION & STANDARDS | ||||||
| CE | ||||||

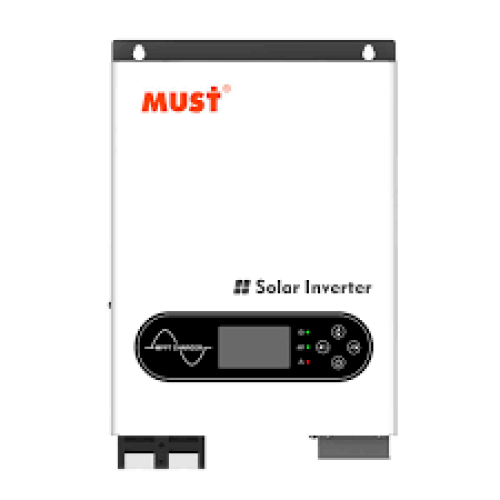

Must ECO 1600W
- Product Code: PV18-1612ECO
- Availability: In Stock
Tags: Must
